Automotive EOL tester.

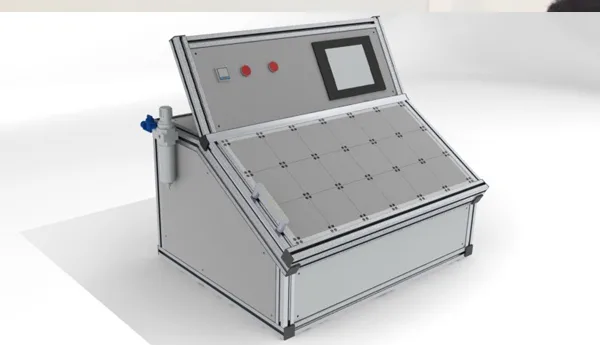

enProducts® recently successfully delivered the Universal Automotive tester Console, ready to integrate custom End of Line (EOL) testers. Siemens PLC-based controller equipped with Phoenix interface modules, I/O modules, pre-crimped connectors, USB, Ethernet connectivity, HMI, etc. Ready to fix modular 100 x 100 mm universal plate enables easy installation and customization according to connector/ harness variants.

Project Outline :

enProducts universal EOL (End of Line) tester console helps Automotive industries to integrate their testing application into a common platform. It has modular 100 x 100 mm blocks for attaching and converting testing units. Thanks to its Built-in PLC and connector modules ready to program. All pneumatic basic connections available with the console enable to plug and play of any pneumatic drives for the testing blocks. Easy interface HMI Module/ Pressure indicators with feedback, fail & pass LED indication, start, and reset buttons are included with the console to make everything ready for a test setup integration.

Features :

  • Modular Block for variant test setup.
  • SIEMENS PLC with 16 I/O, 16 I/O add-on.
  • Din rail Mounted components.
  • 24 V DC/6.2 A SMPS
  • Meets all automotive safety standards.
  • Easy maintenance panel board replacement.
  • Pneumatic connections. Plug and play valve modules.
  • Pneumatic pressure motoring with feedback.
  • HMI and hard button interface.
  • Connector cables with D-sub connectors.
  • Compact size.
  • Easy accessible front panel.

Capacity :

 We have supplied 5 units to a major automotive connector manufacturing sector. We proved to produce and supply 5 units per month. Our dedicated assembly team is available to make customization to the design if required.
